High quality Uhmwpe outrigger pads for loading crane

FOB Reference Price:Get Latest Price
$1.50 - $5.00 / Piece | 100 Piece/Pieces High quality Uhmwpe outrigger pads for loading crane (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
xinjiang
Model Number:
XJF
Material:
PE, PE
Thickness:
10-300
Size:
400*400,500*500,600*600-1300*1300mm
Size::
customized
thickness:
10-300mm
Density:
0.94-1
Color:
Yellow,black or customized
Impact strength:
131Mj/mm2
Certification:
ISO9001:2008
Breaking elongation:
>300%
product:
High quality Uhmwpe outrigger pads for loading crane
Breaking strength:
42 Mpa
Supply Ability
Supply Ability:
50000 Kilogram/Kilograms per Year High quality Uhmwpe outrigger pads for loading crane
Packaging & Delivery
Packaging Details
High quality Uhmwpe outrigger pads for loading cranewith plastic film and pallets
Port
Qingdao
Lead Time :
Shipped in 7 days after payment
Product Description

Products name:High quality Uhmwpe outrigger pads for loading crane

1. Size: 400x400x40mm,500x500x50mm,600x600x60mm,1000x1000x80mm....other size can customized.

2. outrigger pads provide added stability for your crane truck, boom truck or crane. Outrigger pads increase the footprint of your outrigger, adding to the safety especially on softer surfaces

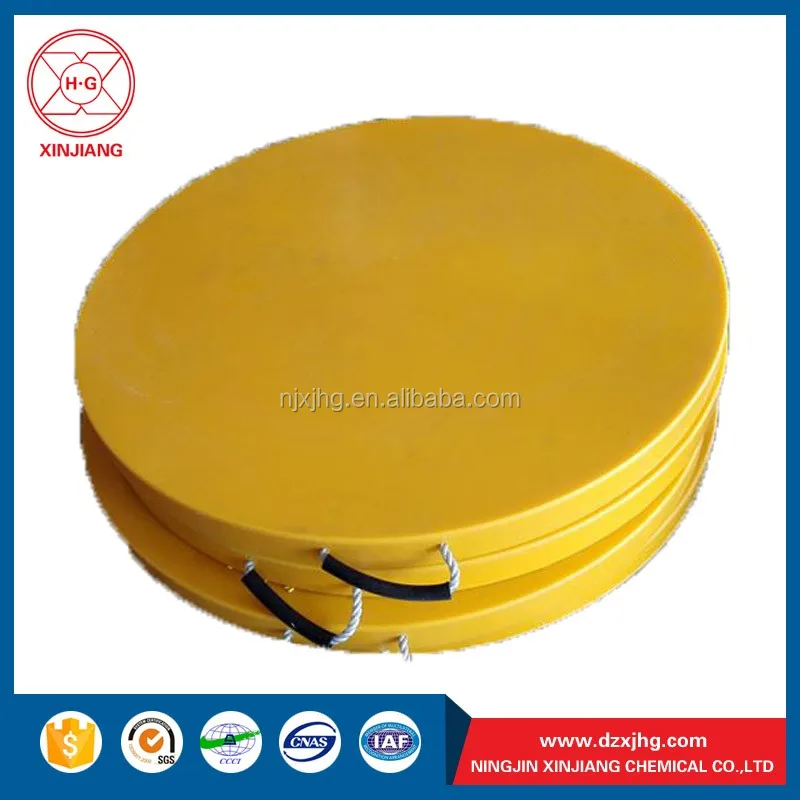

The outrigger pad is composed of two parts, including plate body and a portable rope. The outrigger pad body is made of UHMWPE,HDPE or Nylon composite material at high temperature and high pressure special process. The portable rope is made of nylon material. The end of portable rope plate embedded in the outrigger pad body in order to facilitate the carrying and arrangement.

Product Name
High quality Uhmwpe outrigger pads for loading crane
Material
UHMW-PE or HDPE
Color
Black or yellow,Other color can customized
Shape
Square,Rectangle,Round or customized
Service
Engraved by CNC machine
Impact Strength
≥140kJ/㎡
Working temperature
-100℃~80℃
Brade
XINJIANG
Tensile strength
40 MPa
Used
crane truck, boom truck or crane

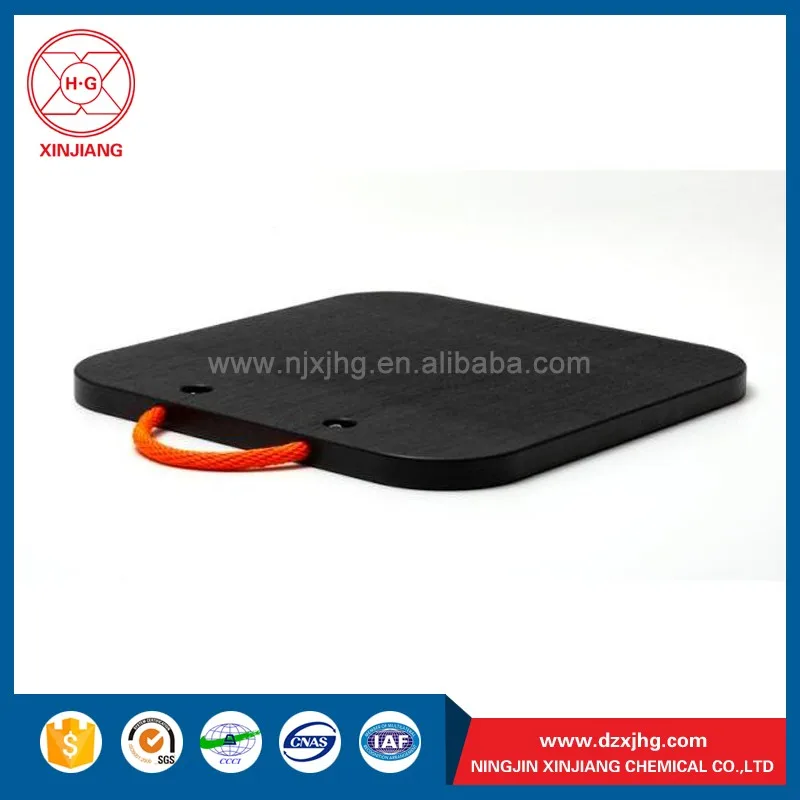

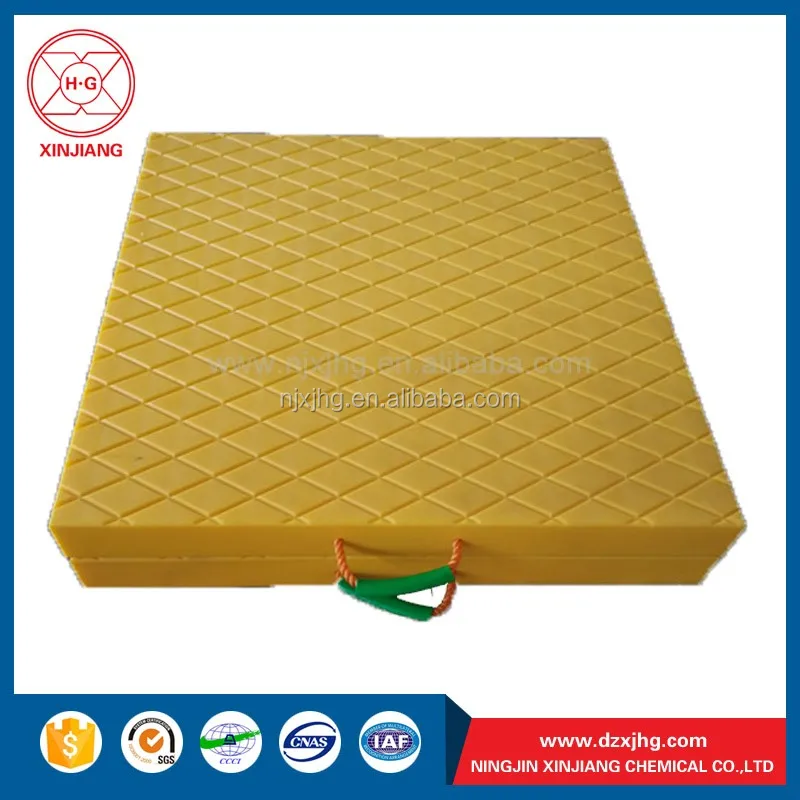

Products Show

Crane outrigger pads Advantage :

--Non-stick surface, easy to clean.
--Corrosion and chemical resistant.
--Noise- absorption, Vibration-absorption
--Super compression strength
--15 Percent the weight of steel pads and easier to handle
--Compressive loads up to one million pounds
--Up to 15,000 pounds per square foot
--Non-Conductive
--Non-Toxic and smell
-- Are flexible, so they will bend but not break under extreme loads.
--Light weight

Crane outrigger pads Benefits:

--Work in sub zero temperatures
--Easy to mount, replace
--Reduced downtime.
--Lower maintenance costs.
--Storage-Friendly
--Durable & Long Lasting
--Cost Efficient compared to Steel or Aluminum
--Safer to use in the field compared to other wood based pads.

Crane outrigger pads Application:

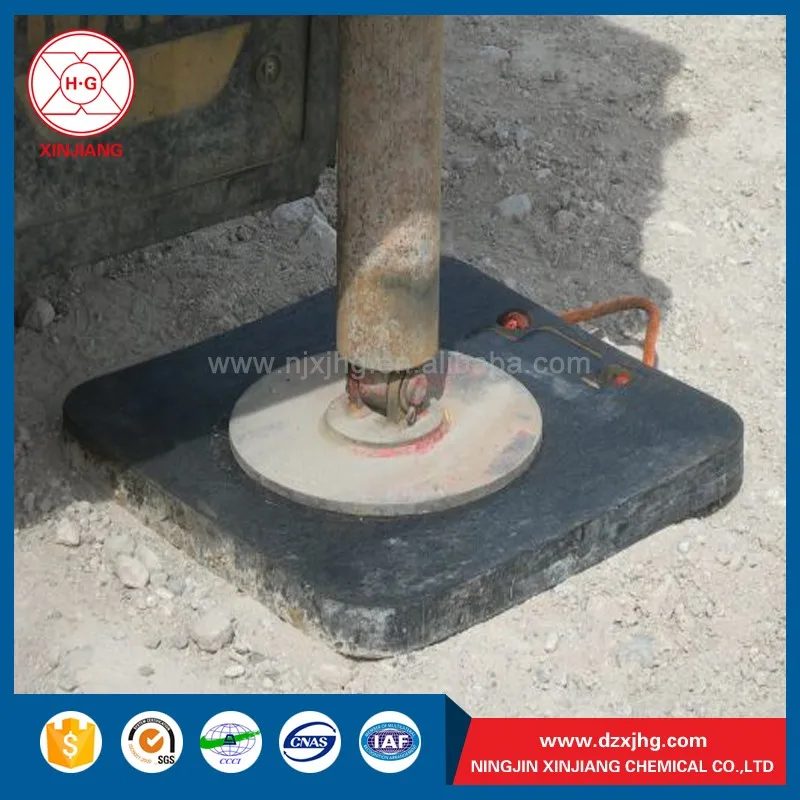

Our Outrigger Pads put under the support-leg of Truck Crane,
Crawler Crane,
Rough Crane, Boom Pump,
Concrete Pump and so on.

Dimensions (mm)
Square
Weight(Kg)
Vertical Jack Capacity
( tonne )
Crane Capacity
( tonne)
400X400X40

6.3
10
12
500X500X40
9.9
12
15
600X600X40
14.2
20
25
700X700X40
19.4
22
30
700X700X40
25.3
25
30
1000X1000X40
39.2
30
35
400X400X50
8
11
15
500X500X50
12.2
15
18
600X600X50
18
23
30
800X800X50
31.3
30
35
1000X1000X50
48
40
50
400X400X60
9.5
12
15
500X500X60
14.5
20
25
600X600X60
21.2
25
30
800X800X60
38.4
35
45
1000X1000X60
58.5
50
65
1200X1200X60
85
40
80
800X800X70
44
40
50
1000X1000X70
68.5
70
80
800X800X80
50.4
50
60
1000X1000X80
78
80
100
1200X1200X80
113
100
120
1000X1000X100
98
110
140
1200X1200X100
141
140
160
If need other crane capacity,please feel free to contact us!

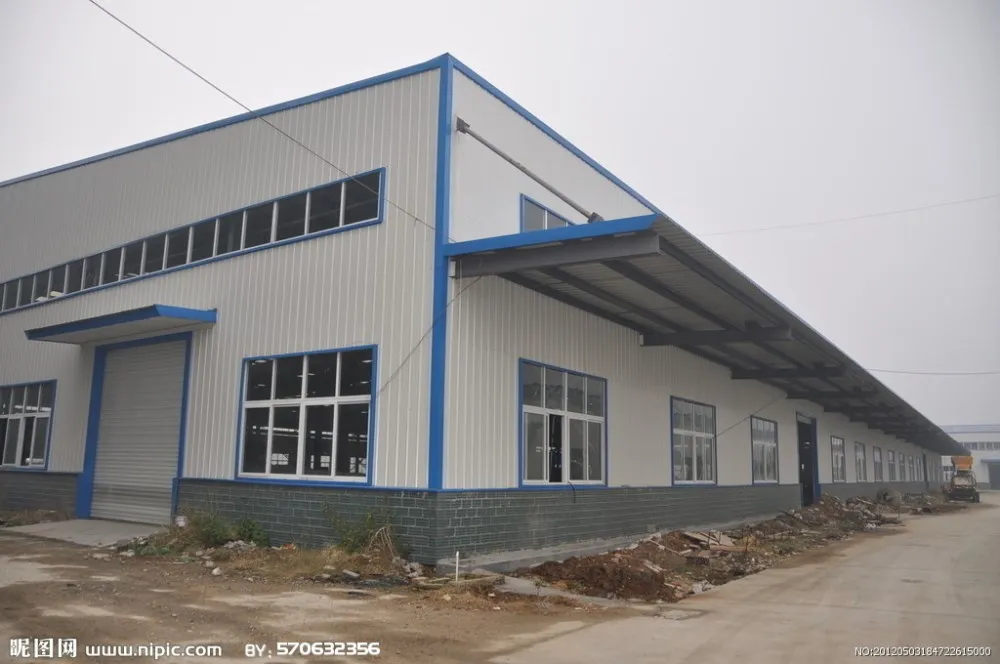

Our Company

About Us

Ningjin Xinjiang Chemical Co., Ltd. was established in 1996, is one of the largest engineering plastic product manufacturers in China.


We have gained many certificates from government in the field. We are specialized in UHMWPE products, like UHMWPE Sheet, UHMWPE Fender pad, UHMWPE Linings, and it's machined parts.




In order to achieving rapid and sustainable development, we are willing to establish a wide and deep cooperation relation with enterprises both home and abroad. Welcome you come and visit our factory!

Production Equipement

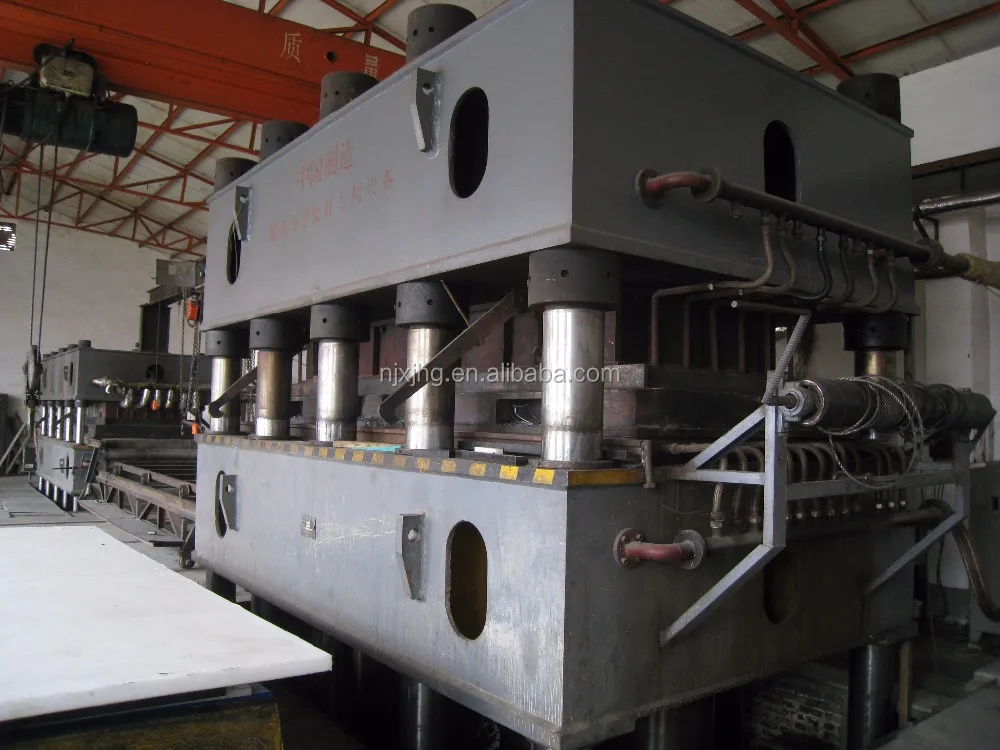

Most advanced vulcanizing machine with high pressure

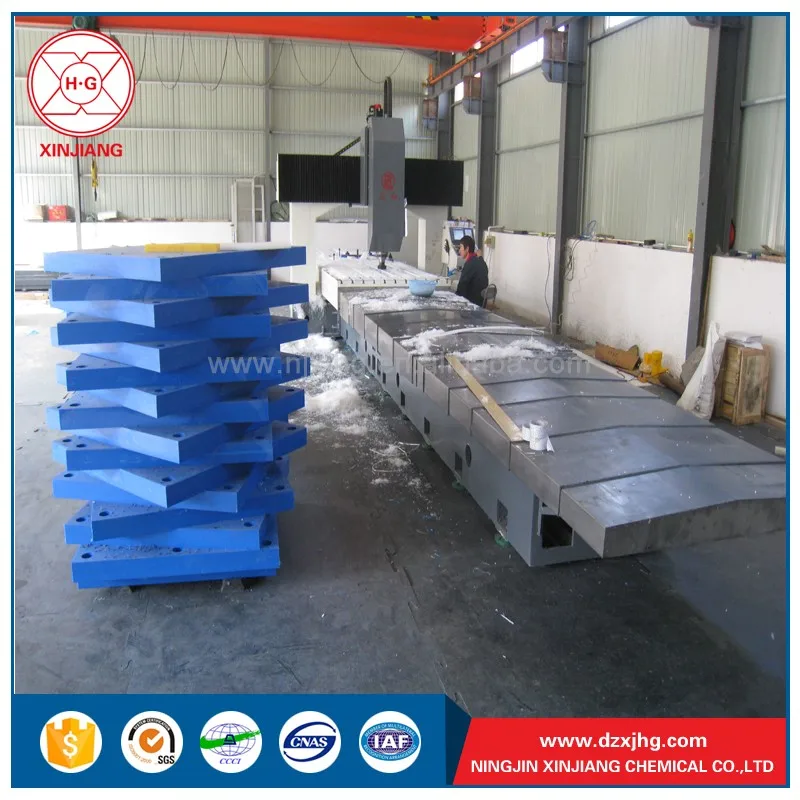

Heavy-duty CNC machine

High precision,High production efficiency

Raw Material

Best virgin raw material-TICONA

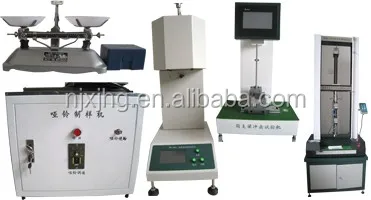

Test Laboratory

Complete  laboratory equipment

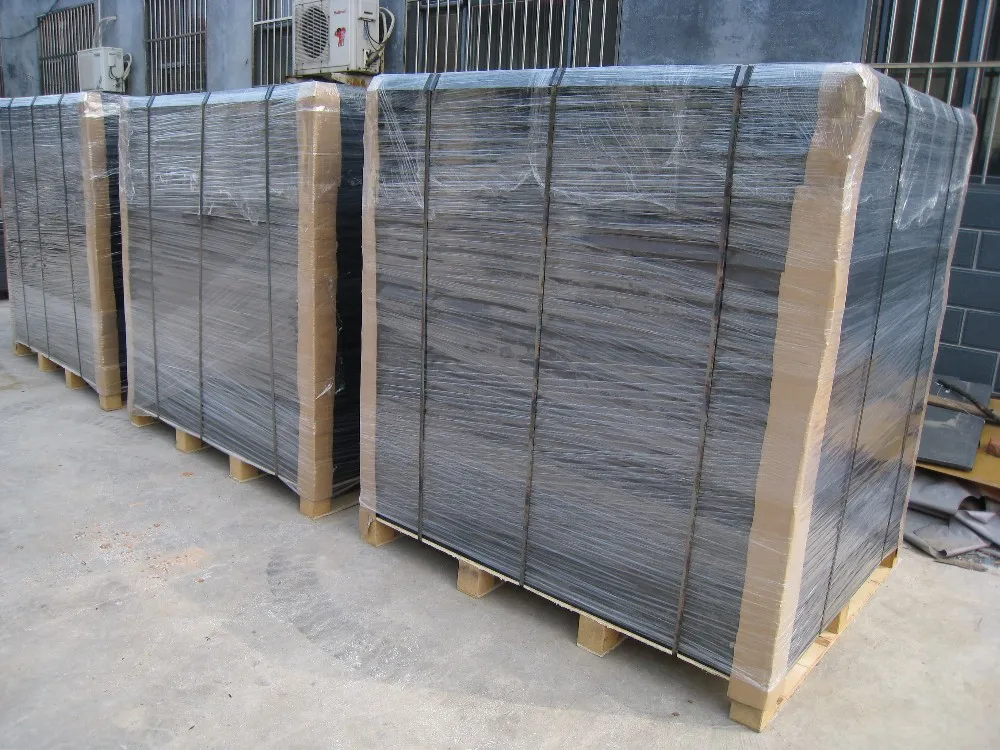

Packing

Packing Details :
Pallet,wooden boxes or according to customer's request

Delivery Details : 7 days after order




FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but freight collect.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.


Any other questions,please click "send",we will give the best answer.
